Review Board 3.0 Release Notes¶
Release date: November 20, 2017
This release contains all bug fixes and features from Review Board version 2.5.16.
This release contains database schema changes to the following tables:
This will take some time to migrate the database, particularly on large installs. Please test the upgrade on a copy of your database first, to ensure the upgrade is smooth and to time how long the upgrade takes.
Before performing the upgrade, make sure to perform a full backup of your database and site directory in case you have any problems.
Do not cancel the upgrade on a production system for any reason.
Review Board 3.0 requires Python 2.7.
If you’re still running Python 2.6, you will need to stay on Review Board 2.5 until you’re able to upgrade your web server to use Python 2.7.
Added a new dependency on pymdown-extensions >= 3.4, < 4.0.
Updated the Markdown dependency to >= 2.6.8, < 2.7.
Added a new dependency on the rbintegrations package.

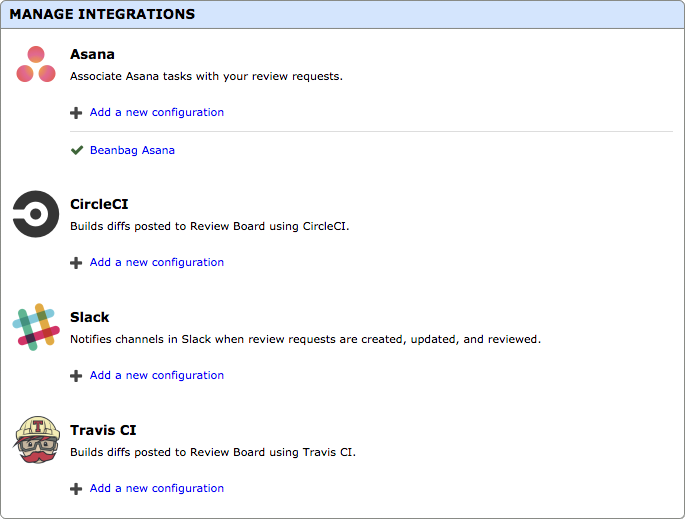

Review Board can now work more closely with other third-party services, such as chat/collaboration services (like Slack, Stride, I Done This), task trackers (Asana, Trello), continuous integration services (Travis CI, CircleCI), and more through the new Integrations framework.
Slack, Travis-CI, and CircleCI integrations are currently provided. We will soon be launching integrations for Stride, Asana, Trello, and I Done This will be coming soon. These are provided by the rbintegrations package, which we’ll be updating independently of Review Board.
Each integration can have any number of different configurations active at once. For instance, multiple teams at a company could each have their own unique Slack configurations that notify their own channels when review requests are posted to their groups, or could have their own build configurations for Travis CI.

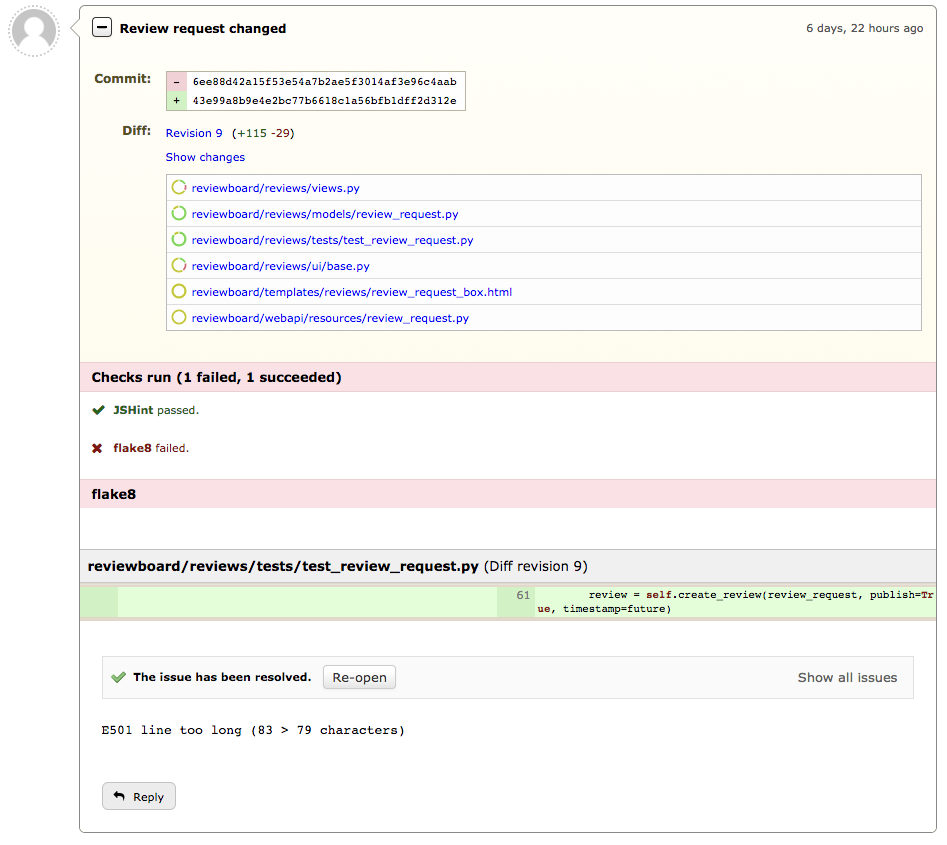

Status Updates for Automated Reviews¶
Status Updates are a new feature built to enable feedback on review requests from automated code review tools. Status updates can show the status of the automated check (such as “pending”, “success”, or “failure”), and, if completed, can provide a review full of comments indicating issues that need to be fixed.
These are used by Travis CI and CircleCI, and can also be used by in-house scripts or extensions in place of filing a normal review. If you’ve already built your own automated code review functionality, it will be easy to migrate to using status updates.
In the coming months, we will be releasing Review Bot 1.0, which will make it easy to begin using automated code review in-house, taking advantage of various static analysis tools to automatically report issues in your code.
Based on work by Shuai Shao.
Review Board has traditionally supported comments on actual content, such as lines of code or file attachments. It’s common to also want to make more general comments on a review request as a whole (for example, if a major refactor is required, it probably doesn’t make sense to add that comment on an individual line of code). Users have traditionally used the review header and/or footer for these, but that did not allow tracking issues.
You can now click Add General Comment in the review request or review dialog to add a general comment, including opening an issue.
Based on work by Yanjia Xin.
New Discussion Highlighting¶
Any new updates, reviews, and replies made to a review request since last viewing the page are now highlighted, making it easy to see what discussion you need to catch up on.
New entries on the page (such as changes to a review request or new reviews) show up with a blue border around the entire entry and a blue dot icon in the summary, providing a quick visual that it’s fresh and new.
New replies on reviews are also specially highlighted, with a blue dot beside the user’s name and a thick blue border to the left of the comment, which helps it stand out when scanning for new discussions you want to catch up on.
The “Ship It” label on reviews now has a little X button that, when clicked and confirmed, will revoke that Ship It, removing it from your review.
This can be clicked by either the reviewer or the owner of the review request. It’s handy when you realize your Ship It was premature, or no longer applies to the review request.
When opening an issue for a comment, the issue can now be set to require verification. The author of a change can still mark an issue as Fixed or Dropped, but it won’t enter that state until the reviewer verifies the resolution.
This helps give the reviewer confidence that the author won’t either accidentally fail to address the issue or close it and then land the change without addressing the feedback.
Users can now use Emoji shortcodes (like
:smile:) in any text field with
Markdown enabled and they’ll be turned into Emojis when viewed.
These have an advantage over Unicode-based Emojis in that they’ll work regardless of the database settings (MySQL databases by default do not support Unicode-based Emojis unless using some very specific encodings, table formats, and settings, none of which are default).
In previous releases, we made use of Gravatars to represent users in discussions and other parts of the UI. In 3.0, we added additional support for uploading custom avatar images. This can be controlled per-user, and administrators can set the default backend for all users.
Extension authors can also write new avatar backends, integrating with any in-house photo databases they may already have.

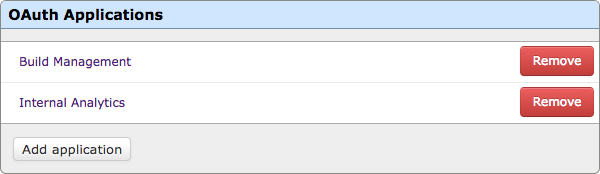

Review Board now works as an OAuth2 Provider, allowing third-party services and applications to interact with Review Board’s API on behalf of a user in a safe way without exposing user credentials.
When requesting authorization, services/applications will direct the user to a special page on the Review Board server where they can see the exact permissions needed by the service and can approve/deny access. The service will then receive a token that can be used until revoked by the user.
In practice, this works similarly to API Tokens, which were introduced in Review Board 2.5 to allow scripts and services to communicate on behalf of a user, optionally with a limited permission set. Unlike API tokens, the authorization process can be initiated by the service and more clearly managed by the user.
Reassign Review Request Ownership¶
The ownership of a review request can now be changed by either the review request’s current owner (i.e. the submitter) or an administrator. This allows review requests to be transferred from one user to another if they’ve been abandoned or the work has been handed off.
For users who have the right permission, the Owner field under a review request’s Information section can now be edited. If a regular user is making the change, they can give away ownership but cannot reclaim it later (that is, it must be reassigned back by the new owner).
Patch by Chenxi Ni.
Upload Images to Text Fields¶
When using Markdown in text fields (such as the review request description or comment text), you can now drag-and-drop an image file into the text box (while in edit mode) to upload it and show it inline with your text. This allows easy sharing of mock-ups or annotations within your discussions.
Based on work by David Kus.
New Dashboard Visuals and Features¶
Restyled the New Updates, Ship It, and Open Issue icons in the Dashboard.
We’ve switched to a new blue dot icon across the product for representing updates to a review request or discussion. In the Dashboard, this replaces the old comment bubble icon.
For Ship Its, we’ve switched to a new “thumbs up” icon, replacing the old checkmark (which was also used for issue tracking).
The Open Issues icon remains largely the same, but is a lot sharper and more clear.
The review request counts in the sidebar are now a shade of blue instead of red, based on feedback from some users that the red suggested something was wrong.

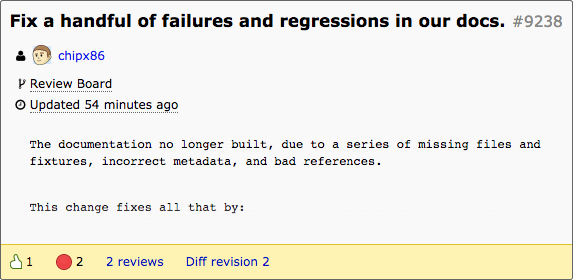

Added an infobox when hovering over review requests in the Dashboard.
This infobox shows the current state of the review request, the summary and description, relevant bugs, number of open issues and reviews, and more. This can help users prioritize the review requests they’ll be looking at.
Based on work by Sharleen Fisher.
Support for Elasticsearch as a search backend.
Elasticsearch is a fast, scalable search engine used by companies of all sizes. We now support using an Elasticsearch server as a search backend. This will offer both performance and feature improvements over Whoosh (the previous and still default search engine).
Note that you will currently need Elasticsearch 2.x for this feature. Versions 5.0 and higher will not work. This is due to compatibility issues with Haystack, the third-party package we use to interface with search backends.
On-the-fly search indexing.
When using the Elasticsearch backend, Review Board can now automatically update the search index in response to changes and discussions on review requests. This keeps the search index up-to-date at all times.
The search field’s suggestions now uses the search index when available.
When using Elasticsearch with on-the-fly search indexing, the search field’s drop-down list of suggestions will now be based off the search index, providing better results.
Send review e-mails only to the owner of the review request.
In large teams, the amount of e-mail traffic generated by code reviews can be significant. Sometimes, the contents of a code review can be trivial or direct enough that it’s really not worth notifying everybody about the change. In this case, you can now select to publish the review and only e-mail the owner. This will still show up in the web UI and update on people’s dashboards, but nobody else will receive the e-mail.
Delete comments from the “Edit Review” dialog.
The review dialog now displays a delete icon next to the edit icon for each comment. This allows diff comments, file attachment comments, and general comments to be removed without finding the original comment flag or discarding the entire review.
Diff Viewer Improvements¶
View the content of deleted files.
Deleted files have typically just been listed as deleted with the content hidden. You can now choose to see the content of these files.
Patch by Adriano Arce.
Improved display for patch errors.
If a patch fails to apply correctly (either due to a bad patch or a problem with the configured repository), Review Board would show a pretty terrible error message and leave debugging files in a temporary directory on the server which was only accessible by the administrator. Review Board will now allow you to view the rejects inline, and makes it easy to download a bundle containing the original file, patch file, and the rejects.
Based on work by Tien Vu.
Added support for tracking symlinks to files in Git diffs.
Symlink changes in diffs are now specially flagged, showing up in the diff viewer as a file modification with “symlink” text beside the file.
Patch by Erik Johansson.
File Attachment Improvements¶
Cycle through file attachments.
When reviewing multiple file attachments, it’s common to go through every attached file in turn. Doing so was kind of annoying because it required navigating back to the main review request page (or opening every attachment in a different tab).
We’ve now added “next” and “previous” attachment buttons on the file attachment view. These ordinarily keep out of the way, but will slide out from the left or right when hovered over with the mouse.
Zoom in and out when reviewing images.
With the advent of high-DPI screens, it’s common for screenshots or image assets to have a 2x or 3x ratio between display pixels and virtual pixels. In order to facilitate review of these files, the image review UI now allows selecting a zoom level (either 33.3%, 50%, 100%, or 200%). These presets allow easily viewing 2x or 3x assets at their natural size.
If the image attachment filename includes “@2x” or “@3x”, the correct zoom level will be preselected when opening the file. Otherwise, the image will be zoomed such that it attempts to fit within the browser window.
Scroll oversized images.
When reviewing very large image file attachments (such as whole-screen screenshots), they would previously overflow the bounds of the containing box. These will now be contained entirely within the review box and can be scrolled.
Opt-in feature checks.
This release lays the groundwork for a new “feature check” system, which we’ll be using going forward to help test experimental new features. Feature checks allow us to produce new features or to change existing features without impacting existing installations. Administrators who want to help test these changes will be able to opt in to the features, and opt back out if they introduce problems.
Extension authors can also make use of the feature system to help test new experimental support in production without affecting all the users on a system or requiring a test server to be set up.
Optionally send an e-mail when a user’s password has changed.
The administator can now configure Review Board to notify users via e-mail if their password has been changed. This defaults to disabled.
Support for Splat as a bug tracker.
Splat is a new bug tracker service we currently have in development, designed to be flexible in its usage and to tie into other project management tools. It’s being used to track bugs and features for Review Board, and will in time be available for others to use.
Other New Features¶
Added rate limiting to the login form.
Attackers can no longer attempt to log in via the login form from the same IP more than a handful of times per minute. By default, this is 5 times per minute, but that can be changed by setting
conf/settings_local.pyto a value in the form of
hfor hours, or
Patch by Raman Dhatt.
Review Request metadata for social media sites and chat services.
Services like Facebook, Twitter, Slack, and others can make use of metadata on a page to show a more useful preview. Review Board now includes this metadata on review requests.
Support for desktop notifications.
Review Board can now pop up notifications on your desktop when a review request is open in the browser. This can be enabled in the user account settings.
Patch by Kristina Vandergulik.
Enabled auto-complete for the “Depends On” field.
When adding items to the “Depends On” field in a review request, you can now type in review request numbers or text from the summary field and auto-complete the results.
Patch by Connor Yoshimoto.
Added a Show inactive toggle to the users list page.
The users grid now allows toggling to show or hide inactive users.
Patch by Raman Dhatt.
Smart Collapsing of Reviews/Changes¶
The default collapsed states for entries on the review request page have been improved, attempting to expand only if the entry is new or has new content that the user might want to see. Anything previously there when the user last visited the page defaults to being collapsed. The goal of this is to better help users focus on new discussions and new updates to review requests.
We might tweak this further based on feedback. Please report any odd behavior you might encounter.
Improved High-DPI Support¶
Review Board no longer temporarily loads low-resolution icons on modern browsers when using a high-DPI (such as a “Retina”) display, opting instead for higher-resolution graphics. When using screens that can make use of “@3x” graphics (such as some newer mobile phone screens and tablets), SVGs will be used to ensure crisp graphics.
Reorganized My Account Page¶
The My Account page now has fewer categories on the left, opting to group more related settings together into fewer pages. There’s now only four pages: Profile (name, e-mail address, avatar, etc.), Settings (general settings and notifications), Groups, and Authentication (password, API Tokens, OAuth2 Tokens).
Other Usability Changes¶
Changed “Submitter” labels to “Owner” throughout the UI.
As review request ownership can now change, these labels have been updated to better standardize on the term “owner” instead of “submitter.” This mainly affects the display of Dashboard columns, review request fields, and condition rules.
Removed dead space causing issues selecting columns in the datagrid column customization menus.
Improved load times for the New Review Request page when using lots of repositories.
The page used to load the information on some types of repositories when loading the New Review Request Page in order to get access to certain state. We’ve changed how things were done, removing the requirement to talk to any repositories in order to load the page.
Hovering over the diff context shown for comments on reviews no longer forces constant redraws of the page.
Instead of expanding the controls down, causing the diff context to grow and push the page contents, the box now expands outward in both directions, leaving no impact on the rest of the page. This is a lot faster to interact with and reduces stress on the browser.
Loading the diff context fragments for comments is now faster, uses less bandwidth, and reduces the workload for the browser.
Reduced queries required for the review request page and the review dialog.
Improved performance when calculating highlighted regions in diffs.
Improved performance when rendering custom actions, navigating bar entries, and additional comment information from extensions.
Access Control for extra_data¶
Many objects in the database provide an
extra_data field, which is
useful for extensions and API users to store additional information
associated with that object. Until now, everything within this field was
exposed via the API.
Extensions can now make keys private by prefixing with a double underscore
__). They can also implement read-only and private access modes through
Better Custom Field Support¶
This also comes with base classes for a number of types of built-in fields: Single-line text fields (supporting autocomplete), Multi-line text fields (supporting Markdown), comma-separated value fields, checkbox fields, dropdown menu fields, and date fields.
Custom Entries on the Review Request Page¶
The entries on the review request page (such as reviews and change descriptions) are now pluggable, allowing extensions to provide additional types of entries. This might include discussions from a chat system, metrics from an internal reporting tool, or just useful bits of UI.
Right now, this is in the early stages, and an extension hook is not provided.
Those wanting to experiment can read through
Extensible User Infoboxes¶
Extensions can now add information to the box which pops up when hovering the mouse over a user’s name. You can populate the infobox with information from internal services or data gathered from an extension.
Other Extension Changes¶
Many changes to the CSS for pages.
We’ve made some significant changes and cleanups to the HTML markup and CSS for the main review request page. If you’ve created an extension that uses ID or class selectors, or a user stylesheet, you’ll need to update it for those changes. Many of these changes have been documented on our wiki.
Infoboxes, like those shown for the bugs and review requests, can now be created by extensions for custom use. They can simply subclass
RB.BaseInfoboxView()and interface it with the
RB.InfoboxManagerView()(reachable by a call to
RB.InfoboxManagerView.getInstance()). A number of CSS classes are provided for styling.
Documentation for this feature is still pending.
Extensions listening to this signal can choose to raise a
RevokeShipItErrorin order to block that Ship It from being revoked.
ReviewPublishedEmailHooknow accepts a
This can be used to provide different To/CC headers based on whether the e-mail was intended only for the submitter of the change.
close_typeargument should be used instead.
typewill still work, but will emit a deprecation warning.
Errors during the installation of extension media are now logged, and no longer cause a page crash.
The API is now rate-limited, preventing a client from making too many
requests from the same IP. This helps prevent attacks from malicious users
and from overly-aggressive clients. By default, anonymous IPs are allowed
1,000 API requests per hour, and authenticated users are allowed 10,000
requests per hour. These can be customized by setting
Attackers can no longer attempt to log into the API from the same IP more
than a handful of times per minute. By default, this is 5 times per minute,
but that can be changed by setting
conf/settings_local.py to a value in the form of
s for seconds,
m for minutes,
h for hours, or
d for days.
Patch by Raman Dhatt.
Better JSON modification in extra_data¶
Clients that need to modify
extra_data on a resource can now set or
modify structured data by making use of JSON Merge Patches or JSON Patches.
JSON Merge Patches are a simple way of setting structured data by passing
extra_data:json=<json data>, which will merge the new data into
extra_data, adding any new dictionary values, overriding any lists, and
deleting anything set to
JSON Patches are a more complex way of running a set of operations on
extra_data, which can add, delete, replace, move, or copy data.
Both of these support private keys and any API access restrictions set by extensions.
Other API Changes¶
Added OAuth2 Applications Resource for managing a user’s OAuth2 applications.
Added OAuth2 Tokens Resource for managing a user’s OAuth2 tokens.
extra_datakey indicating if a review’s Ship It has been revoked.
If a Ship It on a review has been revoked,
extra_dataon Review Resource will contain a
revoked_ship_itvalue set to
Allow users with the
submit_aspermission to see unpublished review requests.
If users are allowed to submit or update review requests on behalf of other users, they were not able to use rbt post -u to update review requests which had not yet been made public. Previously, only administrators could list unpublished review requests.
Patch by Halvor Lund.
absolute_urlfield to the Review Resource payload.
This field contains the URL to view the review within the web UI.
Fixed a performance regression caused by too many SQL queries when loading avatar information for the Submitter column.
Fixed bugs where the review request counters could end up with incorrect values in rare situations.
Fixed blank “Files” list when loading a review request. (Bug #4468)
When initially loading a review request that has file attachments, the “Files:” label would appear with a blank box below it, and then the file attachments would appear after a short wait. We’ve added a loading indicator so it looks less broken.
Patch by Anni Cao.
Fixed styling issues with diffing code blocks from text fields in the change entries.
Fixed bugs where the issue counters could end up with incorrect values in rare situations.
Fixed showing the draft banner when changing file attachment captions.
Fixed a bug where space for a reply draft banner was still taken up after the banner was removed.
Fixed discarding unsaved draft comments when clicking on other line numbers. (Bug #4434)
Patch by Giulia Mattia.
Fixed the order of captions within the image review UI.
When reviewing a diff between two revisions of an image, if the revisions had different captions, those captions would be shown in the wrong order.
Fixed the display of “pop up” pages in the admin UI.
The database section of the admin UI occasionally pops up a new window, to select or create related objects. These pages were intended to be simple content, but they included the header and sidebar. This has been fixed.
Fixed a crash when a user’s full name doesn’t include whitespace. (Bug #4489)
Patch by Riley Creaghan.
Changes Since 3.0 RC 1¶
Fixed regressions with wrapping long content in fields. (Bug #4603)
Fixed wrapping problems with replies to comments filed as part of status updates.
Fixed publishing changes to file attachment captions.
Fixed showing the draft banner when changing file attachment captions.
Fixed a bug where space for a reply draft banner was still taken up after the banner was removed.
Fixed overzealously hiding the reply draft banner after deleting any draft reply on a review, even if it wasn’t the last.
Fixed updating the file index when changing pages or revisions. (Bug #4606)
File Attachment Review¶
Increased spacing between navigation buttons and file attachment content when reviewing files.
Disabled the new-style action registration, which was available in prior betas. We’re planning to replace it in a 3.0.x release.
Fixed a regression where actions weren’t unregistering when extensions were disabled.
Fixed a regression with the configuration forms of some extensions.
