GitLab CI/CD Integration¶

Integration Configuration¶

To configure an integration with GitLab CI:

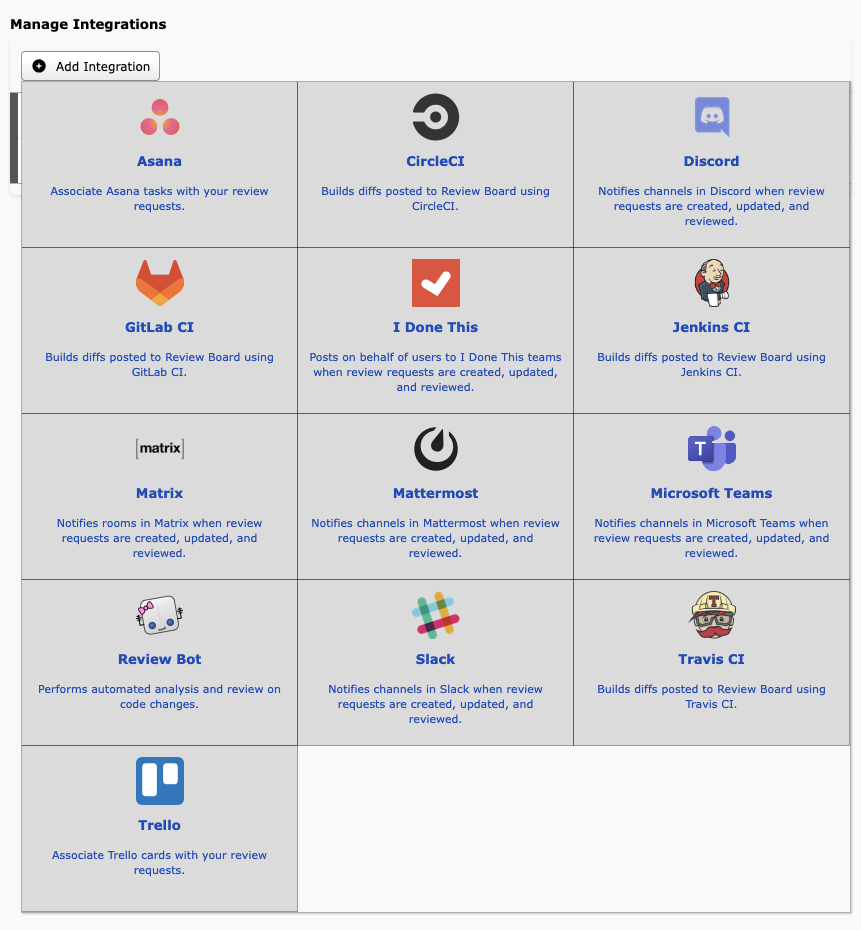

1. Click Add Integration on the Integrations page in the Administration UI and select GitLab CI from the list.



2. Fill out the general fields:

   Name:

   A name for this particular configuration. This can be anything you choose, and is only important if you plan to have multiple configurations.

   Enable this integration:

   This will be on by default. You can turn this off to temporarily or permanently disable this GitLab CI configuration without having to delete it.

   Local Site:

   If you’re using the advanced Local Site (multi-server partition) support, you can specify which site contains this configuration.

   Most users can leave this blank.

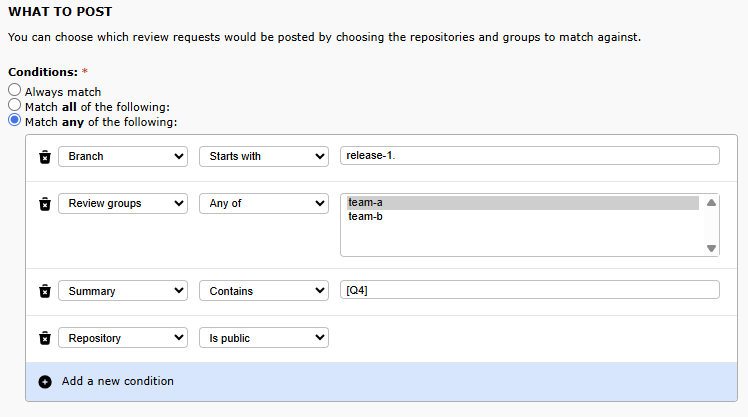

3. Set the Conditions for when Review Board will trigger a build.

   At a minimum, you should set a condition to match a specific repository. Even if you only have one repository configured now, you’ll want to set this up so things don’t break if you connect a second one. If needed, you can create complex rules for which review requests get matched with this config (for example, if you only want to run a test suite for certain branches).



4. Fill out the endpoint and authentication credentials for the GitLab server handling your project:

   Server:

   The URL of your GitLab server. If your project is hosted on GitLab.com, this should be https://gitlab.com.

   Token type:

   The type of API token used for authentication.

   Token:

   The GitLab API token to use for authentication.

5. Fill out the configuration for the build processes in GitLab CI.

   Project name or ID:

   The name of the GitLab project. For example, if your project is located at https://gitlab.example.com/org/myproject/, you would put org/myproject in for this field.

   The special variable {repository_name} will be replaced with the content of the repository name as configured in Review Board.

   Git refname:

   The branch or reference name which will be checked out by GitLab CI before attempting to apply the patch.

   The special variable {branch} will be replaced with the content of the review request’s Branch field.

   Pipeline inputs:

   Additional inputs to send to the GitLab CI pipeline. This should be formatted as a JSON object. Attribute values in this object can include the special variables {branch} and {repository_name}.

   Additional variables:

   Additional CI variables to send to the GitLab CI pipeline. This should be formatted as a JSON object. Attribute values in this object can include the special variables {branch} and {repository_name}.

6. Set the information for when to run builds.

   Run builds manually:

   Enable this if you want GitLab CI builds to only run when manually started.

   When enabled, this will add a Run button to the build entry.

   Build timeout:

   The amount of time until the build is considered to have timed out.

   If the build takes longer than this, it will be marked as timed out and can be re-run.

7. Decide how to report results back to Review Board.

   Report job state:

   If this is checked, results from GitLab will include a summary of all of the jobs in the pipeline.

   GitLab WebHook secret token:

   When creating a WebHook in GitLab, you can provide a secret token that will be included as a header. If you do so, that value should also be entered here, and will be used to prevent possibly malicious attempts to update the pipeline state.

You can create multiple configurations of the integration to do builds for each repository which supports GitLab CI builds.

.gitlab-ci.yml Configuration¶

GitLab CI has no built-in support for doing test builds of patches, so Review Board will trigger a build and pass in information in the environment which will allow you to set up the build using .gitlab-ci.yml.

There are several environment variables which will be passed in to your build:

REVIEWBOARD_API_TOKEN

An API token to use when communicating with Review Board.

REVIEWBOARD_DIFF_REVISION

The revision of the diff to build.

REVIEWBOARD_GITLAB_INTEGRATION_CONFIG_ID

An internal identifier used when reporting status back to the Review Board server. integration configuration.

REVIEWBOARD_PIPELINE_NAME

The name to assign to the pipeline.

REVIEWBOARD_SERVER

The Review Board server name.

REVIEWBOARD_REVIEW_REQUEST

The ID of the review request.

REVIEWBOARD_STATUS_UPDATE_ID

An internal identifier used when reporting status back to the Review Board server.

In order for builds with Review Board to work, the .gitlab-ci.yml file must define a job, but with the addition of a step at the beginning to apply the patch from Review Board.

This is an example .gitlab-ci.yml file which sets up an Alpine Linux environment. The before_script block will check if the pipeline appears to be coming from the Review Board integration, and will apply the patch to the source tree.

image: alpine:latest

.reviewboard:
  patch:
    - |
    if [ -n "$REVIEWBOARD_REVIEW_REQUEST" ]; then
      apk add rbtools git
      rbt patch --api-token "$REVIEWBOARD_API_TOKEN" --server "$REVIEWBOARD_SERVER" --diff-revision "$REVIEWBOARD_DIFF_REVISION" "$REVIEWBOARD_REVIEW_REQUEST"
    fi

default:
  before_script:
    - !reference [.reviewboard, patch]

run-tests:
  script:
    - pip install -e .
    - python ./tests/runtests.py

GitLab WebHook Configuration¶

In order for Review Board to be updated when the GitLab CI pipeline is done, you need to create a WebHook.

From your GitLab project, select Settings -> Webhooks -> Add New Webhook. Configure the WebHook with the following details:

URL:

https://reviewboard.example.com/rbintegrations/gitlab-ci/webhook/

Secret token:

If you want to use a secret token to authenticate WebHook delivery, set this to the same value that you set in the GitLab WebHook secret token field in the integration configuration form.

Trigger:

Pipeline events

For more details, see the GitLab WebHook documentation.

Customizing Pipeline Names¶

GitLab allows customizing the pipeline name, which can make it much easier to see which pipeline runs correspond to review requests. Review Board will pass in a $REVIEWBOARD_PIPELINE_NAME variable, which can be used to override the name:

variables:
  PIPELINE_NAME: "$CI_COMMIT_TITLE"

workflow:
  name: "$PIPELINE_NAME"
  rules:
    - if: "$REVIEWBOARD_PIPELINE_NAME != null"
      variables:
        PIPELINE_NAME: "$REVIEWBOARD_PIPELINE_NAME"
    - when: always

Working With Child Pipelines¶

With complex CI setups, you may have many pipelines which run using triggers. These can even be dynamic, where a parent pipeline creates the YAML configuration for a child.

When using parent/child pipelines triggered from Review Board, there are a couple important considerations.

1. When starting a pipeline, Review Board passes in all of the relevant details via pipeline variables. By default, GitLab CI does not forward these variables to child pipelines. This could result in child pipelines building the wrong commit(s) and being unable to report any job status back to Review Board.

   The easiest way to forward pipeline variables is to set the forward key in the trigger. If you have variables that you do not want to forward, you could instead set a variables key that specifically lists out the Review Board specific variables.

2. It’s also highly recommended to set strategy: depend on the trigger. This will make it so the parent pipeline will wait until all child pipelines are complete before reporting status. If this is not included, the parent pipeline can complete with a success result, even if child pipelines are still running or complete with failures.

stages:
  - triggers

trigger_job:
  stage: triggers
  trigger:
    include:
      - local: child-pipeline.yml
    forward:
      pipeline_variables: true
    strategy: depend
