Review Board supports posting and reviewing code on Beanstalk repositories.
The following types of Beanstalk repositories are supported:
To simplify posting changes to Review Board, we recommend using RBTools. This ensures that the diffs are in the correct format, and makes managing review requests much easier.
Adding the Repository¶
To configure a Beanstalk repository, first proceed to add the repository and select Beanstalk from the Hosting type field.
Step 2: Provide Repository Information¶
Next, you’ll need to fill out the following fields:
- Repository type:
- The type of repository you’re adding. This can be either “Git” or “Subversion”.
- Beanstalk account domain:
- Your account domain (the one you specify when logging into Beanstalk). If
you’re not sure, check your Beanstalk URL. It’s the
- Repository name:
- The name of your repository, as shown in your list of repositories.
Step 3: Choose a Bug Tracker¶
You can specify a bug tracker on another service. Beanstalk, at the time of this writing, does not provide one, but you can choose one on another service or provide a custom URL to your own bug tracker.
Step 4: Manage Access Control¶
You can now choose who should have access to this repository (both posting against it and viewing review requests posted against it). This is separate from Beanstalk’s own access controls.
Step 5: Save the Repository¶
At this point, you should be able to save the repository. If saving succeeds, you’re done! You can start posting changes for review.
Configuring Repository Hooks¶
Review Board can close review requests automatically when pushing commits to Beanstalk. This is done by configuring a WebHook and pointing it to your Review Board server, and then referencing the review request in your commit message (which is done for you when using rbt land).
Let’s go over how to set this up.
Your Review Board server will need to be accessible over the Internet for this to work. Beanstalk will be performing HTTP/HTTPS requests to your server to notify Review Board of new commits.
Add the WebHook¶

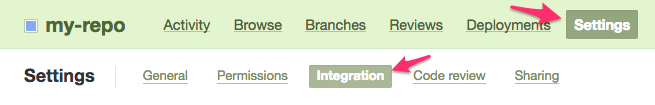

First, log into your Beanstalk account and click on the repository you’re configuring. Then click Settings -> Integration. Then click WebHooks Classic.
You’ll be prompted to enter the URL for your WebHook. You’re going to want to
enter the URL to your server using a path in the form of
repository_id is the numeric ID of the repository in Review Board (which
you can find in the URL for the repository’s configuration page). For example,
this might look like:
Save the hook, and you should be set!
Tag Your Commit Messages¶
To close a review request for a given commit, you’ll need to add some special
text to your commit message that references the review request. This can be in
the form of
Reviewed at review_request_url or
#id. This must be on its own line, but can appear anywhere in the commit
Reviewed at https://reviewboard.example.com/r/123/
Review request #123
If you use rbt land, this will be automatically added for you when landing your changes.
