Configuring Review Bot

Extension Configuration

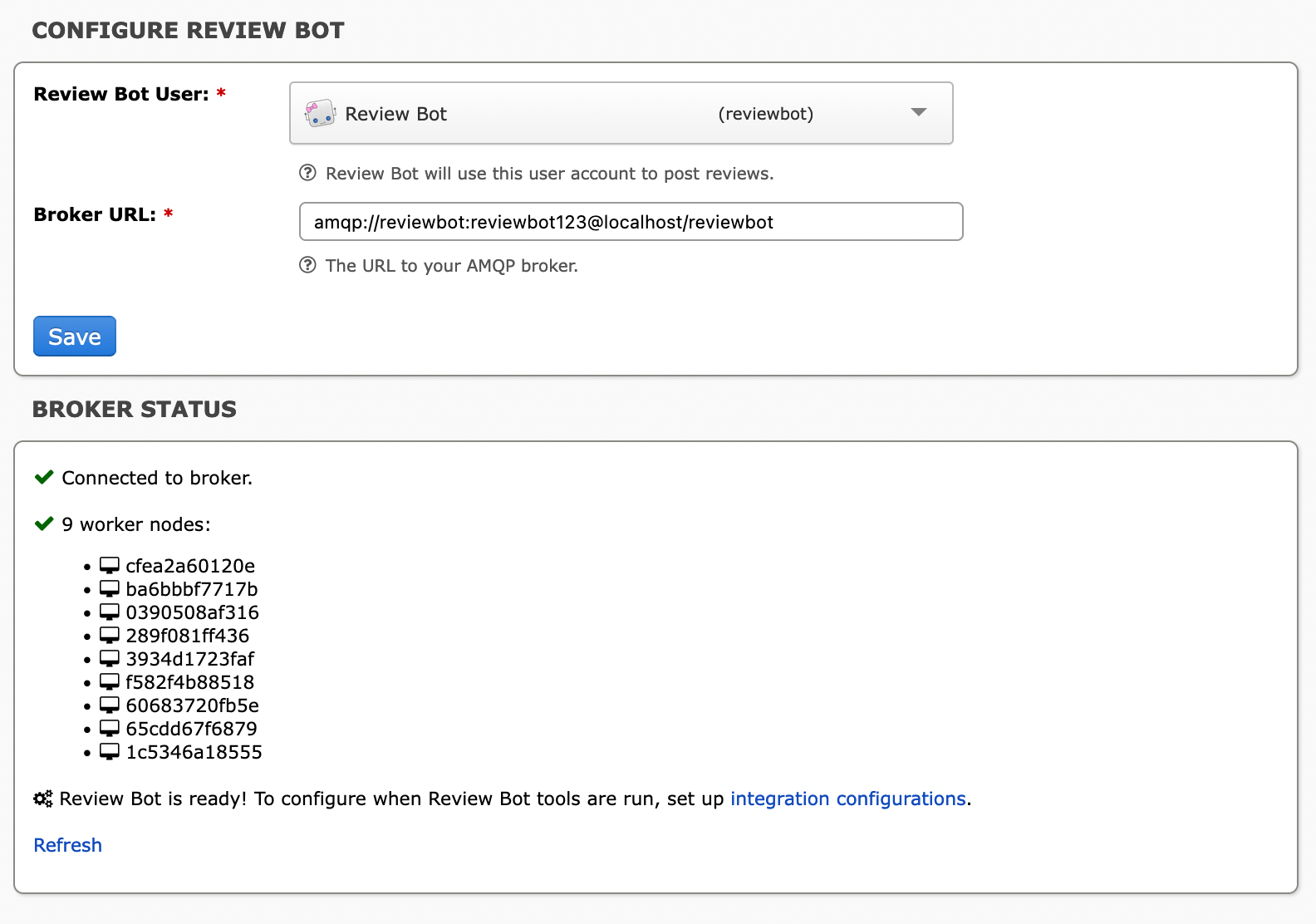

After the Review Bot extension is enabled, it needs to be configured. Open the Review Board administration page and click Extensions in the top bar. Under the extension called “Review Bot”, click Configure to set up the extension.

There are two items that need to be set here: the user, and the broker URL.

../_images/extension-configuration@2x.png

Review Bot User

Review Bot uses a special user account to post reviews. If you were previously using Review Bot 0.1 or 0.2, select the existing Review Bot user. Otherwise, click create a new user for Review Bot.

Broker URL

For the broker URL, put in the URL of your RabbitMQ or other Celery broker. For example, if your broker is running on the same system as your Review Board server, this might look something like:

amqp://guest:guest@localhost:5672//

Checking Status and Updating Tools List

After saving the configuration, the page will attempt to contact the broker and check for workers. The Broker Status box will indicate whether everything is set up correctly. This will also save a list of the available tools, which is required for setting up tool configurations.

Tool Configurations

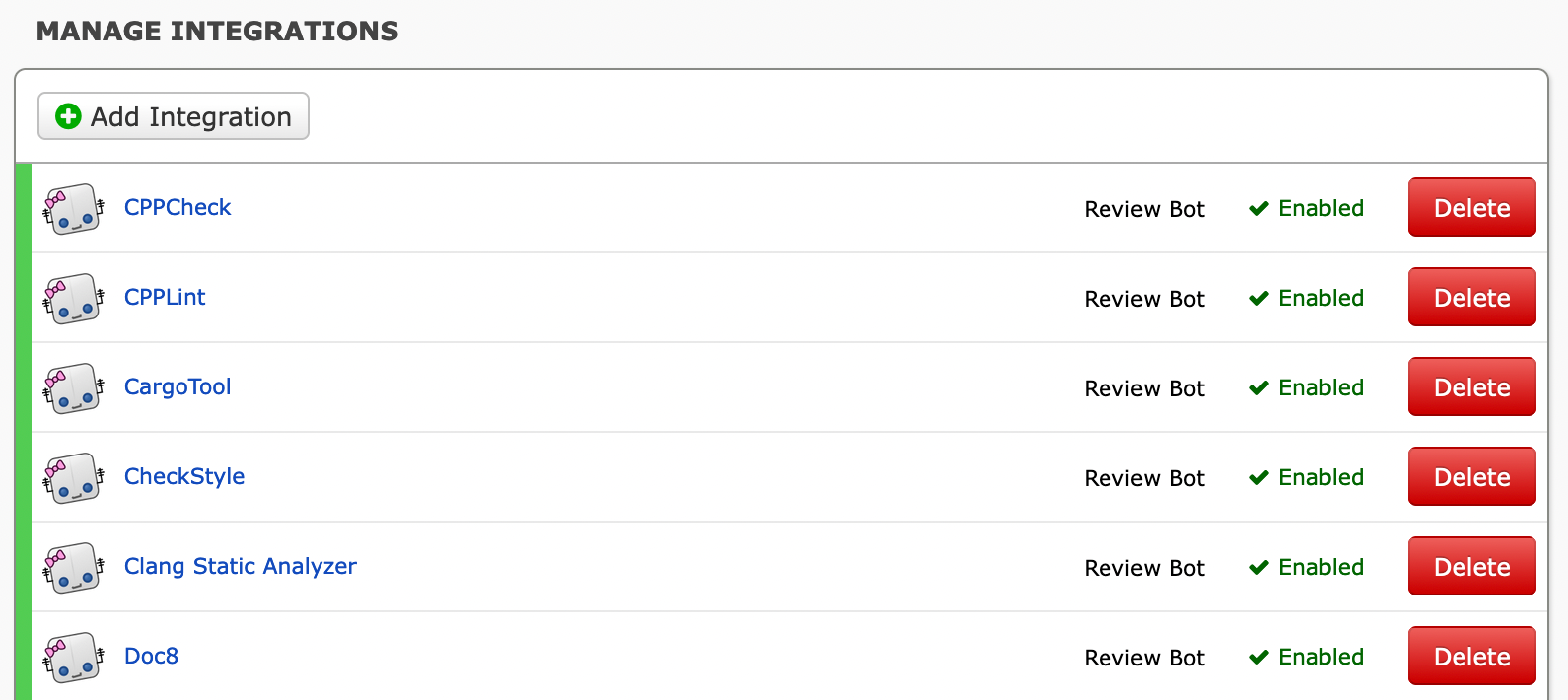

To set up a tool to run, open the Review Board administration page and click Integrations in the top bar. Under the Review Bot section, click Add a new configuration.

../_images/integrations-list@2x.png

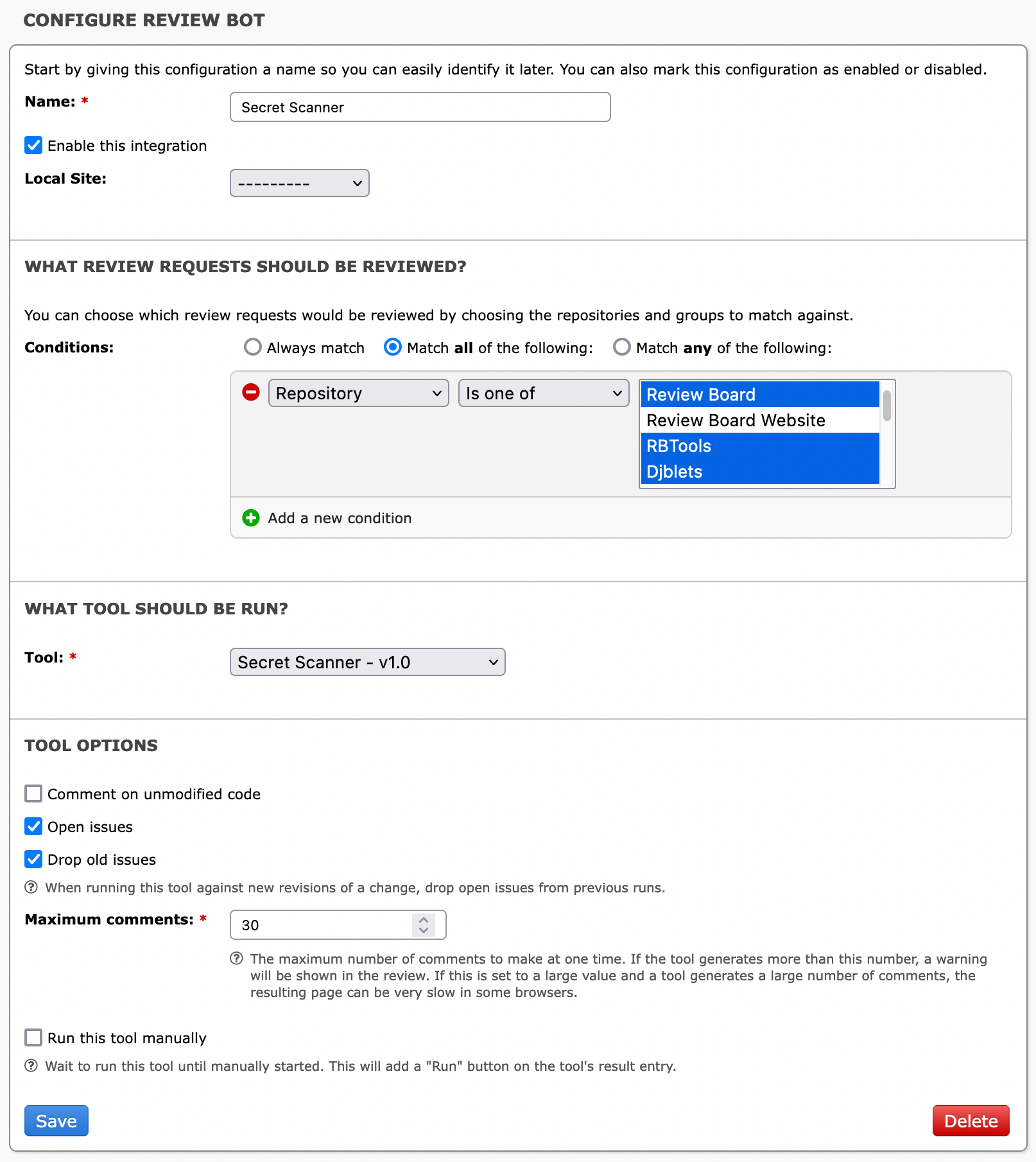

Each tool configuration allows you to specify a tool to run, the conditions for when that tool is run, and some options for how it is run.

First, give the configuration a name. You can then choose a set of conditions for when the tool should run. If you would like it to run on every change, choose Always match. Otherwise, you can select a set of conditions (such as a specific repository, or an assigned review group).

Next, choose which tool to run. Once a tool is selected, additional tool-specific options may appear. See the documentation for the tool you want to configure for more information.

../_images/tool-configuration@2x.png

Note

It’s important to be aware that tools will only run if they’re currently available on a running worker node. If your worker dies, items will be added to the queue but will not run. In this case, the jobs will appear on the review request but will show as timed out.

Note

Some tools may require extra configuration on the worker. Details on this can be found below.

Worker Configuration

In most cases, the Review Bot worker runs without any configuration other than the broker URL which is part of the command line.

There are a few special situations which do require additional configuration in a special Python file which defines variables for the worker.

The location of this file depends on the operating system that the worker is running on. On Linux, the file should be located at /etc/xdg/reviewbot/config.py. On Mac OS, the file is /Library/Application Support/reviewbot/config.py.

On Review Bot 3.0 and higher, the location of the configuration file can also be set through the REVIEWBOT_CONFIG_FILE environment variable.

Paths

New in version 3.0.

Review Bot will look for executables for the tools in the PATH environment variable. However, paths to executables can also be configured manually using exe_paths. For example:

config.py
exe_paths = {
    'go': '/path/to/go',
    'pmd': '/path/to/pmd',
}

Some Java-based tools require one or more .jar files, which can also be provided. For example:

config.py
java_classpaths = {
    'checkstyle': ['/path/to/checkstyle.jar'],
}

Full Repository Access

Some tools require a full clone of the source repository, because they may need access to all files, not just those which have been changed.

Right now, Review Bot supports full repository access for the following types of repositories:

  • Git

  • Mercurial

The worker can define the list of repositories they’re allowed to clone. Your workers don’t all need to support the same list of repositories.

Each repository definition supports the following configuration fields:

name (required)

The configured name of the repository in Review Board.

type (required)

The repository type:

  • Git: git

  • Mercurial: mercurial

clone_path (required)

The git or Mercurial URL (possibly including credentials) to clone the repository from.

These repositories can be specified in the main Review Bot worker configuration file, or in a separate JSON file.

1. The Review Bot configuration file

To configure your repositories here, set the repositories key. For example:

config.py
repositories = [
    {
        'name': 'Review Board',
        'type': 'git',
        'clone_path': 'https://github.com/reviewboard/reviewboard.git',
    },
    {
        'name': 'Upstream Git',
        'type': 'git',
        'clone_path': 'https://github.com/git/git.git',
    },
    {
        'name': 'Upstream Mercurial',
        'type': 'hg',
        'clone_path': 'https://www.mercurial-scm.org/repo/hg/',
    },
]

2. Repositories JSON file

New in version 3.0.

You can manage your repositories in a separate JSON file. To do this, set the repositories_config_path to the location of your JSON file.

For example:

config.py
repositories_config_path = '/etc/xdg/reviewbot/repositories.json'
repositories.json
[
    {
        "name": "Review Board",
        "type": "git",
        "clone_path": "https://github.com/reviewboard/reviewboard.git"
    },
    {
        "name": "Upstream Git",
        "type": "git",
        "clone_path": "https://github.com/git/git.git"
    },
    {
        "name": "Upstream Mercurial",
        "type": "hg",
        "clone_path": "https://www.mercurial-scm.org/repo/hg/"
    }
]

Automatically Fetch Repositories From Review Board

New in version 2.0.

If you have many workers and repositories, it may not be feasible to configure repositories by hand. You can also configure a list of Review Board servers to fetch lists of repositories from.

Note

Either the repository’s Path or Mirror Path field in Review Board must be set to a URL that the Review Bot worker can access and clone from.

If the path is configured to a local file path on the Review Board server, and the worker doesn’t have local access to that same path (e.g., it’s running on a different server, and you’re not using a shared filesystem mount), then you will need to expose the repository over HTTP(S) and set Mirror Path to that address.

Each server definition supports the following configuration fields:

url (required)

The URL to the Review Board server. This must be accessible to the worker.

user (optional)

The username used to authenticate with the API.

This user must have access to the repositories you want to automatically configure.

token (optional)

The API token used to authenticate with the API.

The token can be set with a read-only access policy.

user and token are required if anonymous users are unable to access information on the repositories you want to use (i.e., if anonymous read-only access is turned off or the repositories are set up with access control lists in Review Board).

These servers can be specified in the main Review Bot worker configuration file, or in a separate JSON file.

1. The Review Bot configuration file

To configure your list of servers here, set the reviewboard_servers key. For example:

For example:

config.py
reviewboard_servers = [
    {
        'user': 'reviewbot',
        'token': 'dd16b7208a2a8c88be6788c22340ae46823fc57e',
        'url': 'https://reviews1.eng.example.com',
    },
    {
        'url': 'https://reviews2.eng.example.com',
    },
]

Be aware that manually configured repositories will override any automatically fetched configuration of a duplicate repository entry.

Note

This setting was renamed in Review Bot 3.0.

In Review Bot 2.0, this setting was called review_board_servers. For consistency, the old setting was deprecated in 3.0, and will be removed in 4.0.

See Review Bot 3.0 Configuration Changes.

2. Servers JSON file

New in version 3.0.

You can manage your list of Review Board servers in a separate JSON file. To do this, set the reviewboard_servers_config_path to the location of your JSON file.

For example:

config.py
reviewboard_servers_config_path = '/etc/xdg/reviewbot/servers.json'
servers.json
[
    {
        "user": "reviewbot",
        "token": "dd16b7208a2a8c88be6788c22340ae46823fc57e",
        "url": "https://reviews1.eng.example.com"
    },
    {
        "url": "https://reviews2.eng.example.com"
    }
]
